Electromagnetic Bearing Mounted Clutch
Type - PBC (Normally Off)


DIMENSIONS - PBC SERIES

CLUTCH WITHOUT
FLANGE HUB

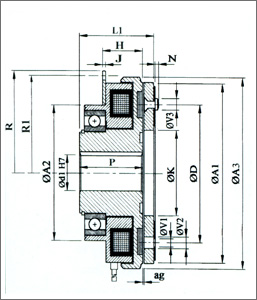

DESIGN : 602		 CLUTCH WITHOUT
FLANGE HUB
DESIGN : 606

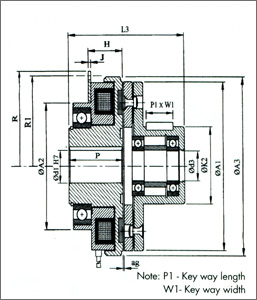

CLUTCH WITH BEARING
MOUNTED FLANGE HUB
DESIGN : 608

PARAMETERS
UBC SERIES

Size /
Torque Nm
Voltage DC
Input
Wattage
W
Max.
rpm
Bore Diameter
d1H7 d2 H7

d3k6
A1
A2
A3
D
H
J
K
Pilot
Max.
Std.
8

24/
96/
190
* Other
Voltages
on request
15
8000
10
20
10, 15
12
63
64
68
46
26
2.0
34.5
15
20
6000
10
25
17, 20
15
80
68
85
60
28
2.0
41.5
30
28
5000
14
30
20, 25
20
100
85
106
76
32.5
2.5
51.5
60
35
4000
14
40
20, 25, 30
25
125
100
133
95
36.5
2.5
61.5
125
50
3000
20
50
25, 30, 40
30
160
127
170
120
41.5
3.5
79.5
250
68
3000
25
60
30, 40, 50
40
200
151.5
213
158
47
4.0
99
500
85
2000
25
60
40, 45, 50
45
250
152.4
265
210
55
4.0
125


SIZE
K1
K2
L1
L2
L3
M1
N
P
R
R1
P1
W1
ag
V1
V2
V3
Z1
Z2
08
28
38
43.7
59
67
15
1.5
40
41
36
14
10
0.2
3x3.2
6.3
3x6
4.1
10
15
33
45
47.7
68
77
20
1.8
43.5
50
45
20
14
0.2
3.x4.2
8.0
3x7
4.1
10
30
43
55
54.4
80
90
25
2.1
49
60
56
22
16
0.3
3x5.2
10.5
3x9
4.1
10
60
50
64
61.5
92
108
30
2.8
55
72.5
68.5
32
18
0.3
3x6.2
12.0
3x10
4.1
10
125
65
75
69.5
108.5
128.5
38
3.4
61.5
99
93
40
20
0.3
3x8.2
15.0
3x13
8.1
20
250
84
90
83
133
155
48
4.5
73
113.5
107.5
50
25
0.5
3x10.2
18.0
3x16
8.1
20
500
105
115
92
149.5
175
55
4.5
81
141
135
50
32
0.5
4x12.2
22.0
4x20
8.1
20


Note : Higher size bearing mounted clutch with torques ranging between 625 Nm to 2550 Nm are available along with dimensional details in request.


1Nm=0.102 kgm = 0.737 lb-ft=10.2 kgcm
Specifications are subject to change without notice
All dimensions are in mm only
