Product




Electromagnetic Flange Mounted Brake
Type - PFB (Normally Off)

 DIMENSIONS - PFB SERIES


BRAKE WITHOUT
FLANGE HUB

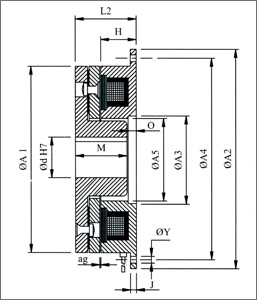

DESIGN : 202		 BRAKE WITH
INTERNAL HUB
DESIGN : 204

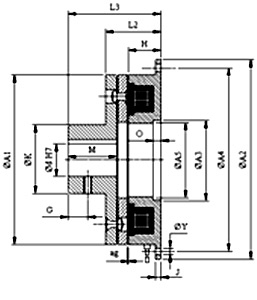

BRAKE WITH EXTERNAL
FLANGE HUB
DESIGN : 206


Size/
Torque
Nm
Voltage
DC
Input
Wattage
Watts
Max.
rpm
Wt. Kg. (Approx.)
Bore Ø dH7
202
204
206
Pilot
Std.
Max
08

24/
96/
190
* Other
Voltages
on request
11.5
8000
0.30
0.32
0.32
10.0
10.15
17
15
16
6000
0.54
0.6
0.6
10.0
15.17
20
30
21
5000
1.0
1.1
1.1
14.0
20.25
30
60
28
4000
1.8
2.1
2.1
14.0
20,30
35
125
38
3000
3.1
3.2
3.2
20.0
30,40
45
250
45
3000
6.0
7.0
7.0
25.0
40,50
60
500
70
2000
11
13
13
25.0
50,60
80
625
80
1500
15
17.5
17.5
25.0
60,80
100
1240
100
1500
21
24.5
24.5
30.0
80,110
130
2550
120
1000
28
32
32
40.0
110,130
130


Size
ØA1
ØA2
ØA3
ØA4
ØA5
ØD
H
J
K
K1
L1
L2
L3
M
N
O
ØV1
ØV2
ØV3
Y
ag
8
63
80
35
72
33
46
18
2.0
28
34.5
22.0
25.5
37.0
15
1.5
3.5
3x3.2
3x6.5
3x6.0
4x4.5
0.2
15
80
100
42
90
40
60
20
2.5
33
41.5
24.5
28.5
44.5
20
1.8
4.3
3x4.2
3x8.0
3x7.0
4x5.5
0.2
30
100
125
52
112
49
76
22
3.0
43
51.5
28.0
33.0
53.0
25
2.1
5.0
3x5.2
3x10.5
3x9.0
4x6.6
0.3
60
125
150
62
137
59
95
24
3.5
50
61.5
31.0
37.0
61.0
30
2.8
5.5
3x6.2
3x12.0
3x10.5
4x6.6
0.3
125
160
190
80
175
77
120
26
4.0
65
79.5
35.0
42.0
73.0
38
3.4
6.0
3x8.2
3x15.0
3x14.0
4x9.0
0.3
250
200
230
100
215
97
158
30
5.0
84
99.0
41.5
50.5
89.5
48
4.5
7.0
3x10.2
3x18.0
3x17.0
4x9.0
0.5
500
250
290
125
270
122
210
35
6.0
105
125.0
48.0
59.0
103.0
55
4.5
8.0
4x12.2
4x22.0
4x19.0
4x11.0
0.5
625
320
355
160
335
156
250
44
14.0
135
160.0
60.0
72.0
125.0
64
5.0
9.0
4x16.2
4x28.0
4x26.0
8x11.0
1.0
1240
400
440
200
420
196
315
54
17.0
175
200.0
74.0
90.0
150.0
76
5.0
11.0
4x18.2
4x32.0
4x30.0
8x14.0
1.0
2550
500
540
250
520
246
400
65
22.0
225
250.0
90.0
111.0
192.0
100
5.0
14.0
4x20.2
4x35.0
4x32.0
8x14.0
1.0

1Nm=0.102 kgm = 0.737 lb-ft=10.2 kgcm
Specifications are subject to change without prior notice
Cable length approx 400mm
All dimensions are in mm only
